X-STATIC - Grounding Kit for Dust Collection Systems
X-STATIC - Grounding Kit for Dust Collection Systems
5.0 / 5.0
(2) 2 total reviews
Couldn't load pickup availability

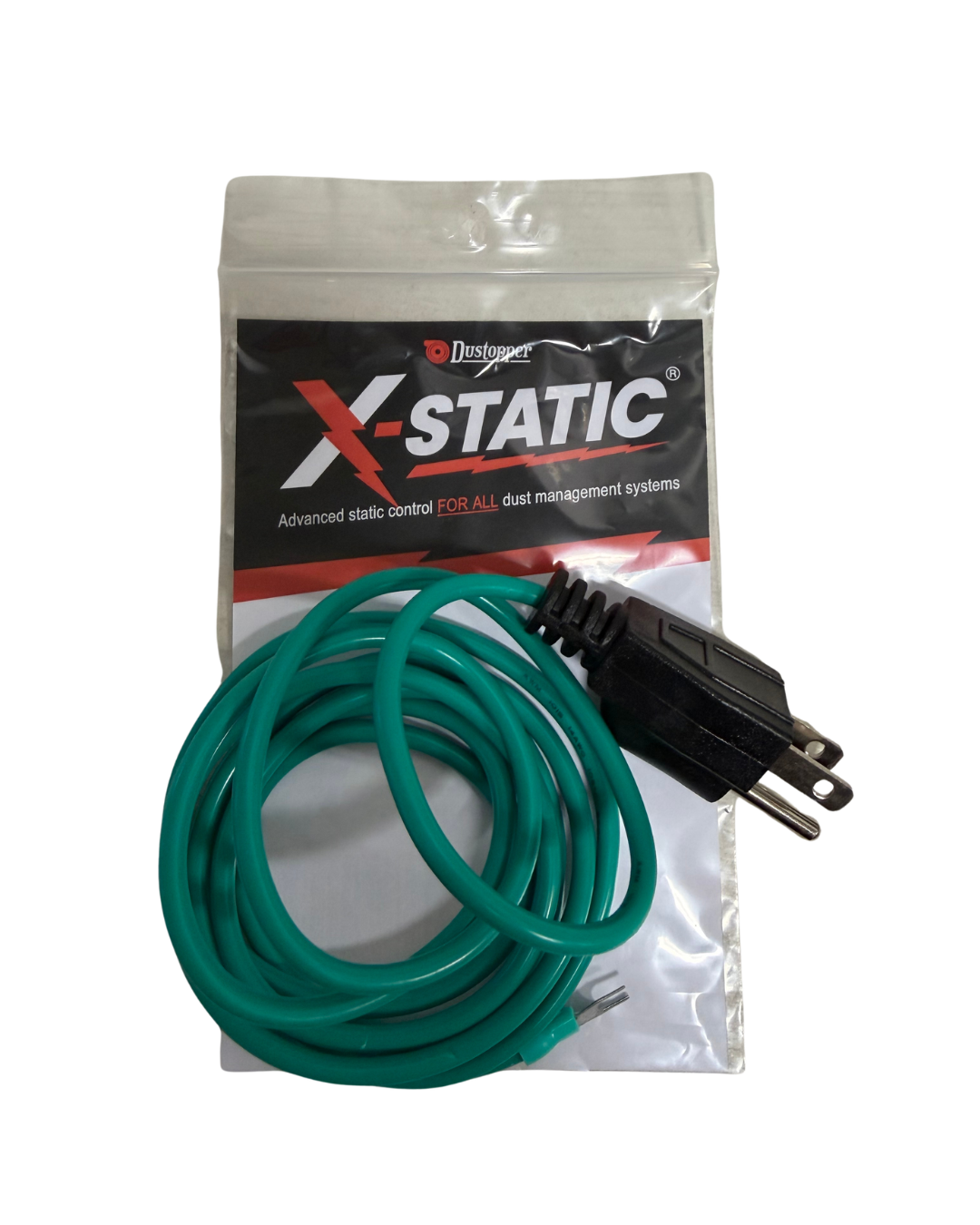

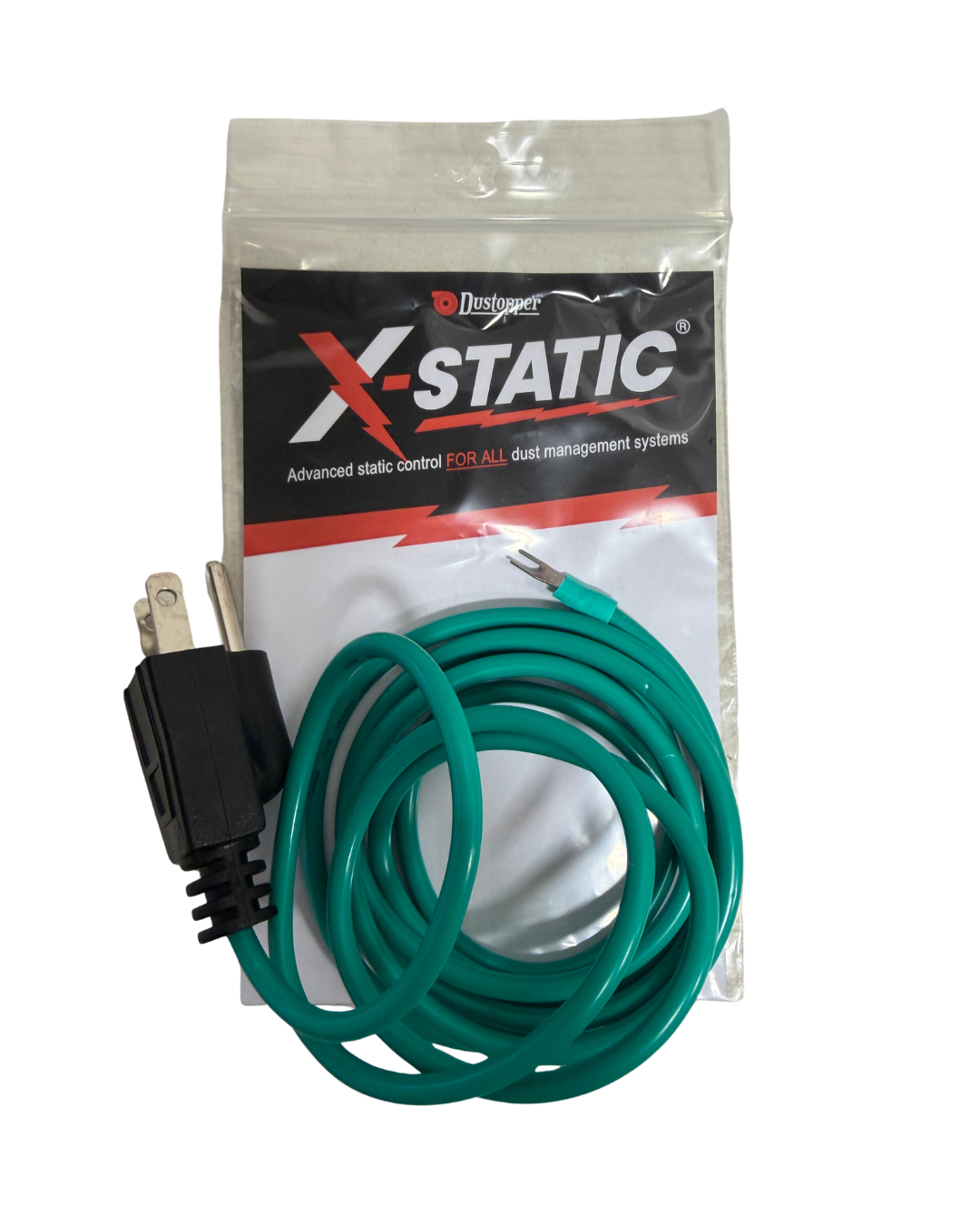

Zaps are a thing of the past with Dustopper’s X-STATIC! If you use a wood planer or sander, then you are all too familiar with the electricity that it can generate. We've found a way to safely discharge the static electricity that has been formed during dust collection. By adding an electrical discharge pathway, you can safely dispose of your dust. X-Static installs easily, and it’s designed to interact with a wall socket with three openings. The round opening of course is the ground. It also works in shops that have wooden floors. There has been a color change from yellow wire to green wire. The wire is the same gauge, just a different color. X-Static is ready to use right out of the bag.
IMPORTANT – Only connect the grounding wire to the grounding system. Faster Better Easier, LLC, the makers of Dustopper and X-STATIC are not liable for any damage and/or injuries that may occur from improper grounding or static discharge. It is the user’s responsibility to ensure their dust collection system is properly grounded. Click here to learn more about grounding your dust collection system: https://www.dustopper.com/blogs/help/grounding-the-dustopper-pro
*Free shipping within the continental United States
X-STATIC Connection to Dustopper

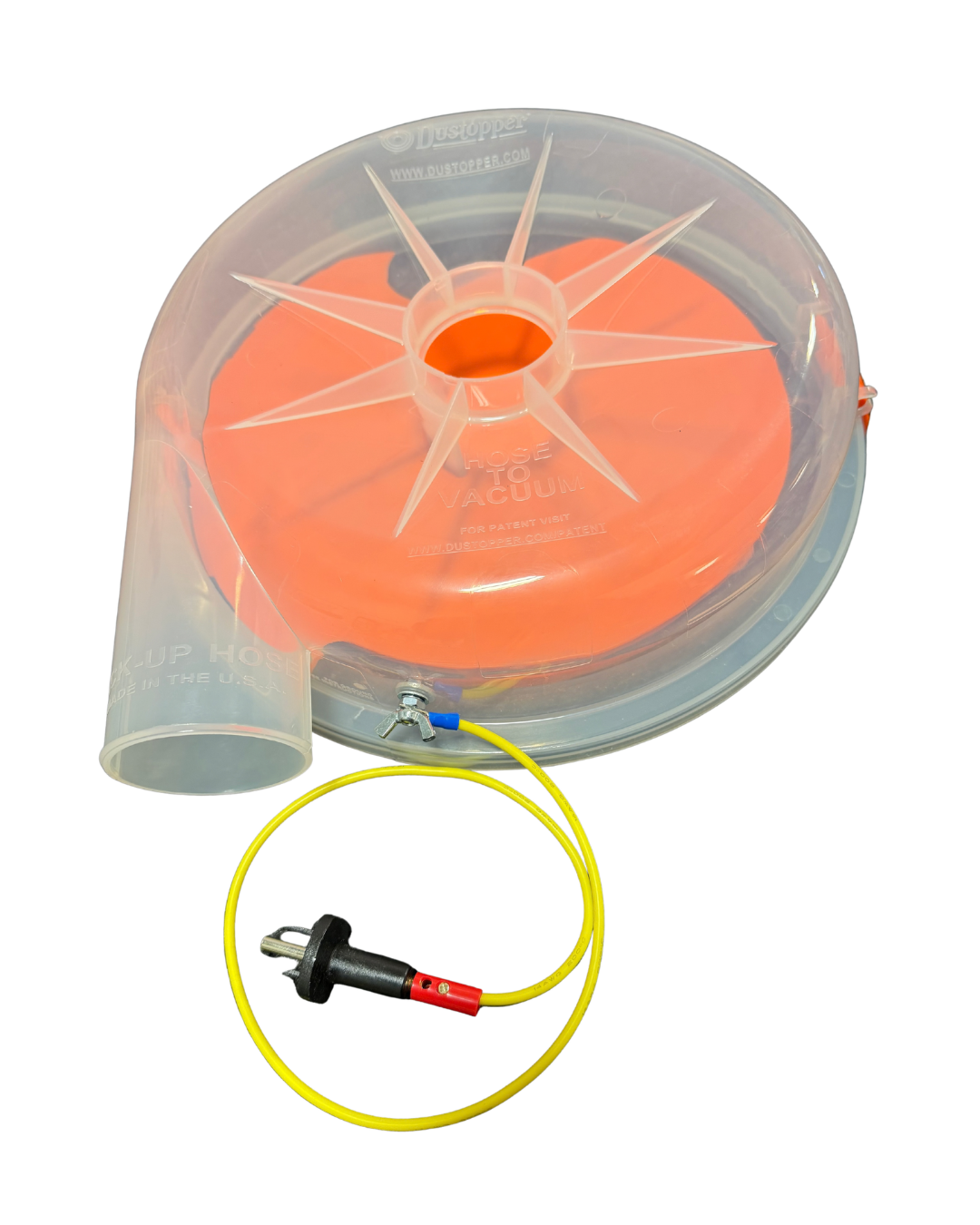

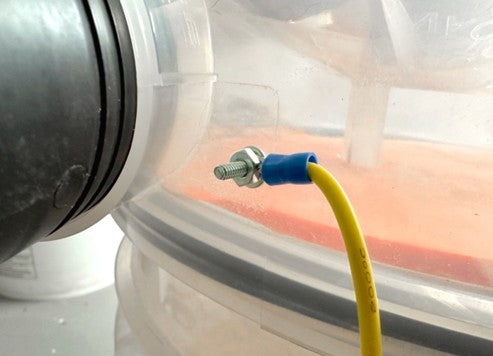

Locate the recommended grounding location near the pickup hose port on the Dustopper PRO. Drill a hole slightly larger than the 8-32 x 5/8” screw. Put the ¼” flat washer on the screw and with a pair of needle-nose pliers from the inside of the PRO insert the screw through the hole and slide on the internal tooth locking washer, the #8 flat washer, and hex nut until snug. Then slide the fork connector of the X-Static in place, then tighten the wing nut until it is snug with X-Static now attached. Now plug the X-Static into a grounded outlet.
IMPORTANT STATIC SHOCK WARNING! Static build up can occur in many situations when a vacuum is involved with the collection of dust. The Dustopper® is made of an anti-static resin, but that DOES NOT mean it removes static. WHEN WORKING WITH THE DUSTOPPER®, USE PROPER GROUNDING AND EXERCISE EXTREME CAUTION DURING THE COLLECTION AND DISPOSAL OF COLLECTED DUST. FASTER BETTER EASIER, LLC, THE MAKERS OF THE DUSTOPPER®, ARE NOT LIABLE FOR ANY DAMAGE AND/OR INJURIES THAT MAY OCCUR FROM IMPROPER GROUNDING OR STATIC DISCHARGE. IT IS THE USER'S RESPONSIBILITY TO ENSURE THEIR DUSTOPPER® SYSTEM IS PROPERLY GROUNDED.
*Customers outside of the USA are responsible for paying import tariffs on all purchases.
