How to Reduce Static Electricity: Grounding Your Dustopper PRO with X-Static®
Static electricity is common in woodworking and dust collection. As sawdust and fine particles move through hoses, fittings, and dust collection equipment, electrical charge can build up. You may experience a small shock when touching your equipment, or notice fine dust clinging to plastic surfaces.  The Dustopper PRO is made from anti-static resin, but anti-static resin alone does not eliminate static electricity.

The X-Static® grounding hardware provides an electrical discharge path to help dissipate static charge. This guide explains what causes static electricity, how X-Static® works, how to connect the grounding hardware, and what to check if you continue to experience static shocks.

What Causes Static Electricity in Dust Collection?
Static electricity develops when electrical charges become unbalanced on a material. During dust collection, charge can develop as particles rub against one another and contact the surfaces of hoses, fittings, and other components.

Several factors can contribute to static buildup:
- Moving dust and debris: Sawdust and sanding dust can develop electrical charge as they move through your collection system.
- Plastic hoses and components: Many plastics are electrical insulators and can retain surface charge.
- Dry air: Static shocks are often more noticeable in dry conditions.

Static electricity is a common characteristic of dust collection systems. However, noticeable static shocks should not be ignored, especially when collecting combustible dust.

How Does X-Static Help?
X-Static® provides a grounding connection through a wire attached to the designated grounding hardware on your Dustopper PRO. The wire connects to the ground contact of a properly grounded electrical outlet, providing a path for static charge to dissipate.
When properly installed and connected, this arrangement helps manage static charge in your dust collection setup.

Important:
The Dustopper PRO's anti-static resin and the X-Static® grounding lead do not make every plastic hose, fitting, or container electrically conductive. Grounding helps dissipate charge when an effective electrical path exists; it does not guarantee that every static shock or discharge will be eliminated.


How to Install the Dustopper PRO X-Static® Grounding Hardware
Follow the grounding instructions and use the designated hardware. The following steps summarize the connection process.
Step 1: Locate the grounding point
Locate the recommended grounding position on the Dustopper PRO near the pickup-hose port. Use the location shown in the official installation instructions.
Step 2: Install the grounding hardware
The grounding hardware uses a screw, washers, and a nut to establish the attachment point. Follow the supplied instructions for the hole location, hole size, hardware order, and tightening procedure.
The correct arrangement matters because the X-Static® lead must attach securely to the designated hardware.  Click this link and watch the video on how to install the grounding hardware. https://www.youtube.com/watch?v=cRthfCFlak0

Friction and contact:
Particles moving through hoses and striking surfaces can generate electrical charge.
1. Dustopper PRO grounding hardware: A designated connection point installed near the pickup-hose port.
2. X-Static® grounding lead: The wire that connects to the installed grounding hardware.
3. Grounded electrical outlet: The outlet's ground contact provides the grounding connection.

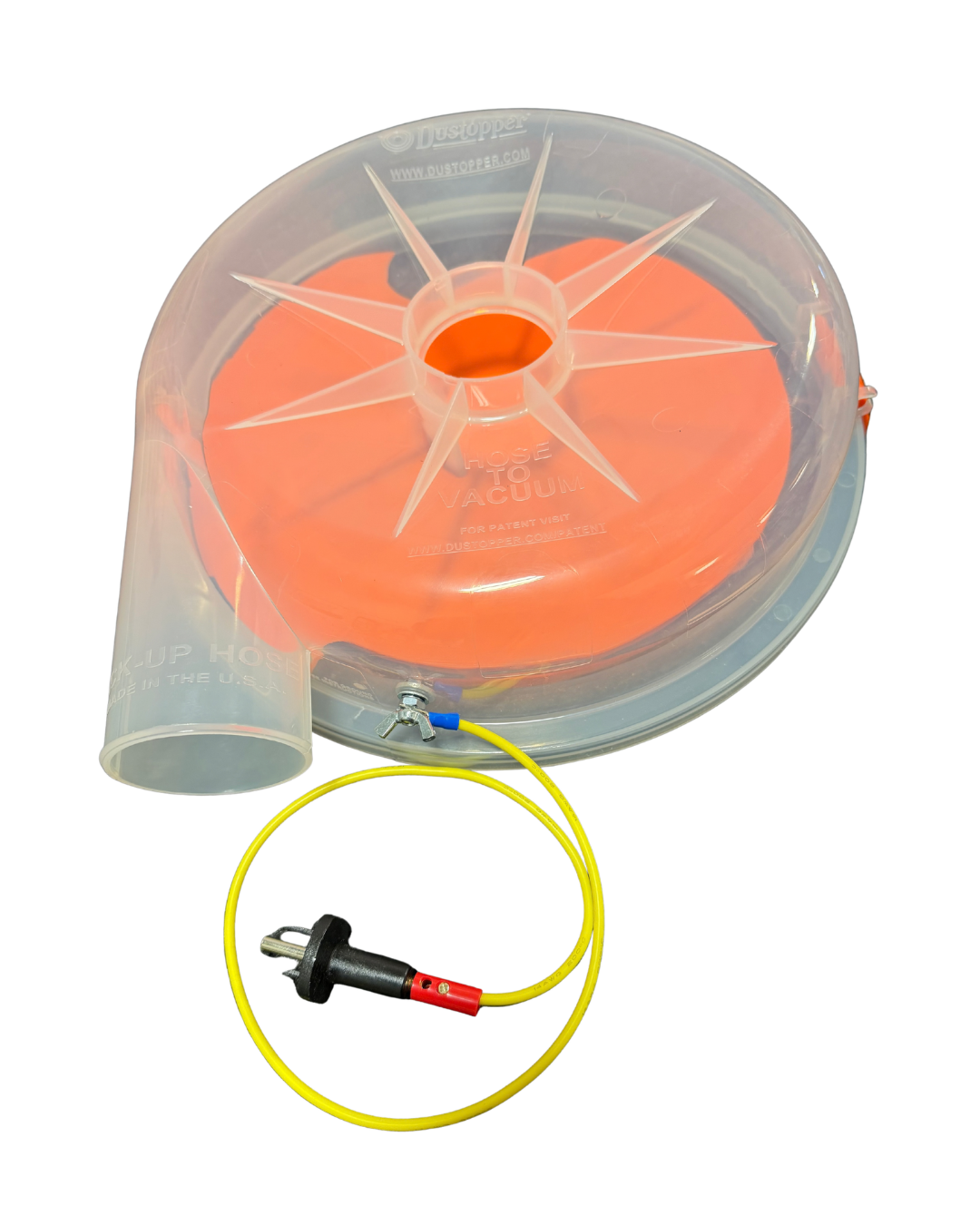

Attach the X-Static® grounding wire:
Attach the fork terminal on the X-Static® grounding wire to the installed grounding hardware. Secure it as directed so that the connection remains in place during normal use.
Connect X-Static® to a grounded outlet. Insert the X-Static® plug into the ground opening of a properly grounded, three-opening wall outlet.

The X-Static® plug is for the grounding connection only. It is not intended to supply operating power to your vacuum or other equipment. Never modify the plug, bypass electrical safety features, or connect the grounding lead to an unverified ground.
Inspect the completed installation. Before using the system, check that the grounding hardware and wire are secure and undamaged, and that the outlet is properly grounded. If you are unsure about the outlet or grounding arrangement, have it checked by a qualified electrician.

Troubleshooting Static Electricity
I'm still getting a static shock. What should I check?
First, inspect the X-Static® grounding lead and its connection to the Dustopper PRO hardware. Check for loose connections, visible damage, or an incorrectly installed component.
Next, verify that the X-Static® plug is connected to a properly grounded outlet. Do not assume that an outlet is grounded simply because it has three openings.
Remember that plastic components may still accumulate charge even when the grounding hardware is installed correctly. If shocks continue, stop and review the setup before making changes to the grounding system.

Why does dust still cling to my hoses or container?
Fine dust can cling to plastic because of static charge, surface texture, and other factors. X-Static® provides a grounding path through the designated hardware, but it does not make every plastic surface conductive. Some dust may continue to cling to the system.

Does the Dustopper PRO's anti-static resin eliminate static electricity?
No. The Dustopper PRO is made from anti-static resin, but this does not mean that the entire dust collection system is free from static charge. X-Static® provides an additional grounding path to help manage static buildup.

Can I connect the grounding wire to any metal object?
No. A metal object is not necessarily connected to a suitable ground. Use the designated Dustopper PRO grounding hardware and connect X-Static® as described in the manufacturer's instructions. Do not improvise connections to pipes, appliances, random metal surfaces, or electrical wiring.

Does grounding make my dust collection system completely safe?
No, grounding arrangement eliminates every possible static discharge or dust-related hazard. Fine wood dust and other combustible dusts can present fire or explosion risks under certain conditions. Proper grounding is only one aspect of safe dust collection and housekeeping. Use equipment appropriate for the material being collected and the conditions in which it is used.

Important Safety Information
The user is responsible for ensuring that the grounding system is properly installed and connected. If you are unsure about the installation or the suitability of your grounding arrangement, stop and seek qualified assistance.

Need Help With Your Dustopper PRO?
Contact Dustopper support at info@dustopper.com if you have any questions about the X-Static® hardware, installation, or static electricity in your dust collection system.

Use the X-Static® grounding hardware according to the manufacturer's instructions.
Connect X-Static® only to the designated grounding hardware and a properly grounded outlet. Never modify the grounding plug, defeat electrical safety features, or use an unverified grounding point. Inspect the grounding wire and hardware regularly for damage or loose connections.
Do not assume that grounding eliminates all static charge or makes combustible dust hazards disappear.
